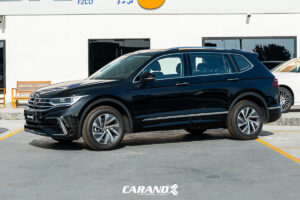

Volkswagen Tiguan L430 Premium Edition 1.4L Plug-in Hybrid 2024

Model Code	VTL430P14H24-BE
Model Year	2024
Body Type	SUV
Axle	Front Wheel Drive
Displacement	1.4L
Fuel type:	Plug-in Hybrid

Technical

Mid-size SUV
Energy Type Plug-in hybrid
Engine 1.4T 150HP L4 Plug-in Hybrid
Pure electric range (km) 55
Maximum power (kW) 155
Maximum torque (N·m) 400

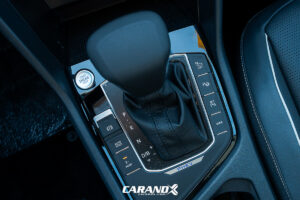

Gearbox 6-speed Wet Dual Clutch Transmission (DCT)
Length x width x height (mm) 4733x1859x1673
Body structure 5-door 5-seater SUV
Maximum speed (km/h) 200
Official 0-100km/h acceleration time (s) 8.2
NEDC comprehensive fuel consumption (L/100km) 1.8
WLTC comprehensive fuel consumption (L/100km) 2.65
Power consumption per 100 km (kWh/100km) 16.2kWh
Electric energy equivalent fuel consumption (L/100km) 1.8 Wheelbase(mm) 2791
Front wheel track (mm) 1582
Rear wheelbase(mm) 1572

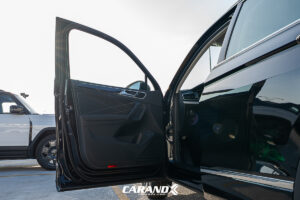

Door opening method Swing door
Curb weight(kg) 1870
Full load mass (kg) 2340
Fuel tank capacity(L) 47

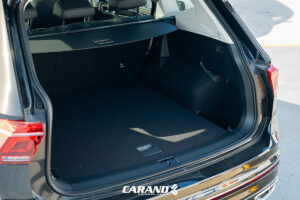

Luggage compartment volume (L) 432-1725

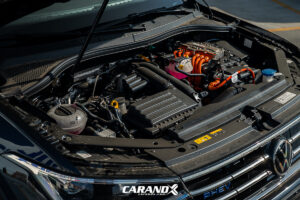

Engine Model DXJ, Displacement (mL) 1395, Displacement(L) 1.4 Air intake form Turbocharger, Engine layout Sideways
Cylinder arrangement L, Number of cylinders 4,
Number of valves per cylinder 4, Valve mechanism DOHC Maximum horsepower (Ps) 150
Maximum power (kW) 110
Maximum power speed (rpm) 6000
Maximum torque (N·m) 250
Maximum torque speed (rpm) 1750-2000
Fuel form Plug-in hybrid, Fuel grade 95
Oil supply method Direct injection
Cylinder head material Aluminum Alloy
Cylinder material Aluminum Alloy
Environmental standards National VI
Motor Description Plug-in hybrid 116 hp
Motor Type Permanent magnet/synchronous
Total motor power (kW) 85
Total motor horsepower (Ps) 116
Total torque of the motor (N·m) 330
Maximum power of front motor (kW) 85
Maximum torque of front motor (N·m) 330
System total power (kW) 155
System comprehensive torque (N·m) 400
Number of drive motors Single motor, Motor layout Pre
Battery Type Ternary lithium battery
Battery brand SAIC Volkswagen
Battery capacity (kWh) 13
Drive mode Front wheel drive
Front McPherson independent suspension
Rear Multi-link independent suspension
Steering type Electric power assist
Vehicle structure Load-bearing
Front brake type Ventilated disc, Rear brake type
Parking brake type Electronic parking brake
Front tire size 215/65 R17, Rear tire size 215/65 R17

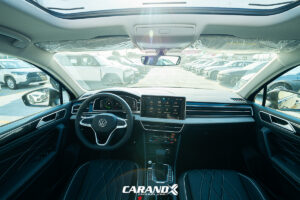

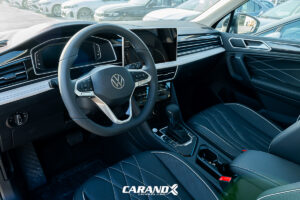

Interior

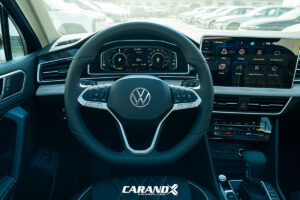

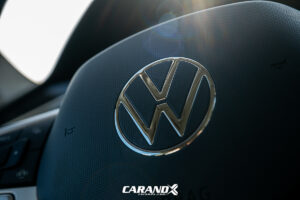

Steering wheel material Genuine leather
Steering wheel adjustment Up and down + front and back

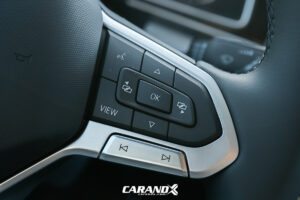

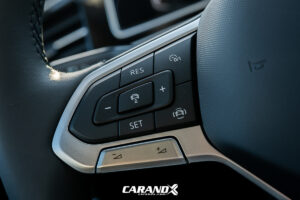

Steering wheel functions Multi-function control, Heating

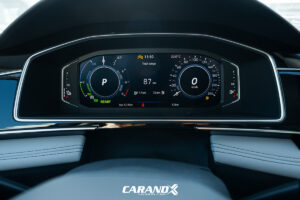

10.3 inch Driving computer screen Full LCD Color
Wireless charging for mobile phones
Luggage compartment 12V power socket

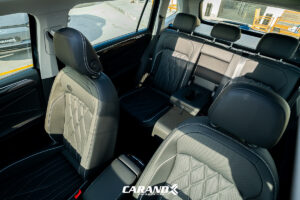

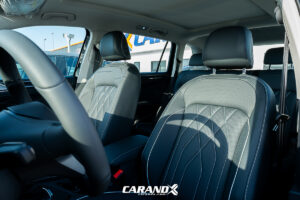

Seat Material Imitation leather
Seat Layout 2+3

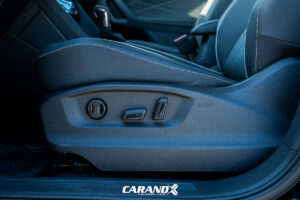

Electric seat adjustment Main driver’s seat, Co-pilot seat
Overall adjustment of the driver’s seat Move forward and backward Backrest angle, Height adjustment
Driver’s seat partial adjustment Headrest, Waist
Passenger seat overall adjustment Move forward and backward
Height adjustment, Backrest angle
Passenger seat partial adjustment Headrest, Waist
Second row seat overall adjustment Backrest angle adjustment
Front seat functions Heating
Front/rear armrests Front row, Back row

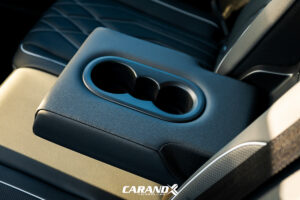

Rear cup holder

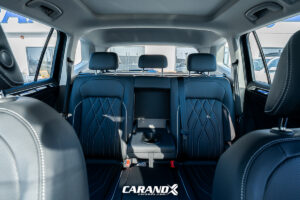

Rear seat folding ratio 40:20:40

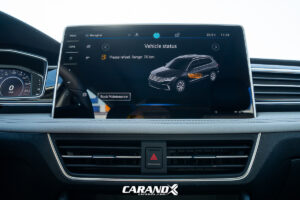

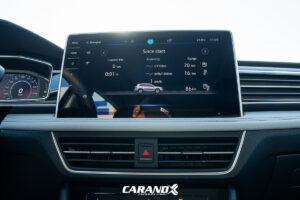

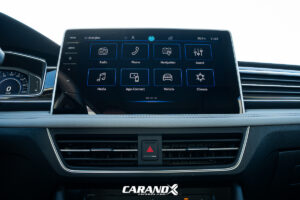

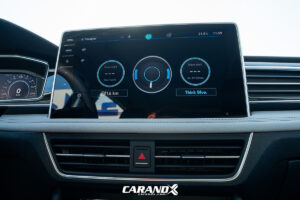

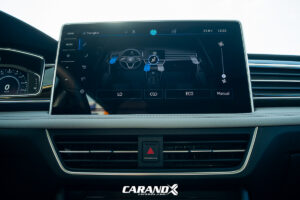

12 inch Central control screen
8 Speakers
Satellite navigation system
Navigation traffic information display
Bluetooth/Car Phone
Mobile Internet Mapping CarLife, CarPlay, Original machine
Internet of Vehicles, 4G Network, Wi-Fi hotspots
Voice recognition control system
Voice wake-up recognition function by region

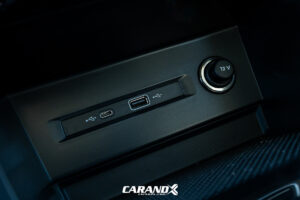

Multimedia Interface USB/Type-C
Number of USB/Type-C ports 2 front row, 2 rear seats
Interior ambient lighting Single color
Interior rearview mirror function Automatic anti-glare

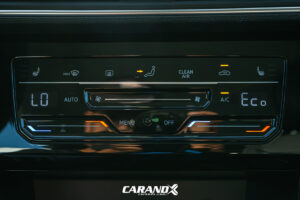

Car makeup mirror Main driving seat + lighting, Co-pilot seat + with lighting Air conditioning control method Automatic

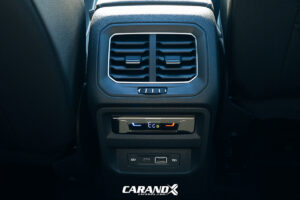

Rear independent air conditioning
Rear air outlet
Temperature zone control Three-zone air conditioning
In-car PM2.5 filter
Mobile App Remote Control Vehicle monitoring, Charging management Service Appointment

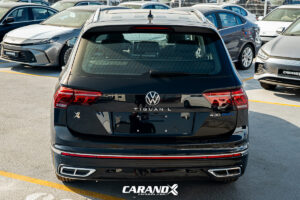

Exterior

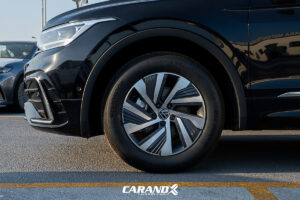

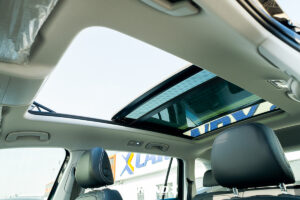

17 inch Aluminum Alloy Wheels Openable panoramic sunroof Roof rack

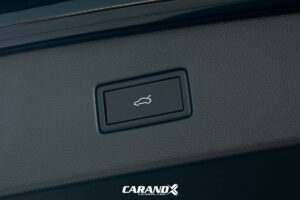

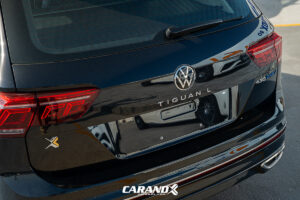

Electric tailgate
Sensor-type tailgate
Electric tailgate position memory

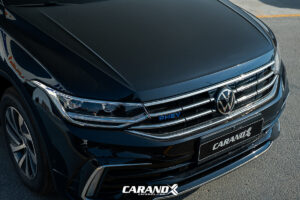

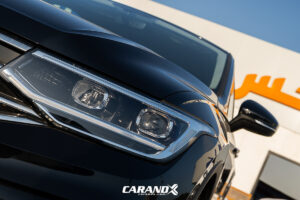

Low beam LED
High beam LED
Daytime running lights

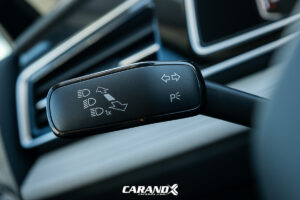

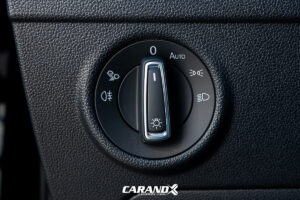

Automatic headlights
Headlight height adjustment
Headlight Delay Off
Headlight rain and fog mode

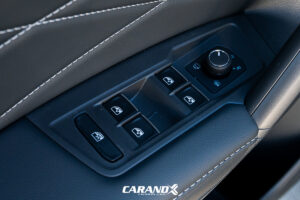

Power windows Front row, Back row
One-touch window lifting Full vehicle
Window anti-pinch function

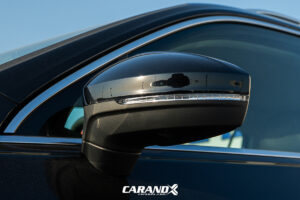

Exterior mirror function Electric adjustment diagram, Heating Electric folding, Automatically tilt down when reversing Automatically fold when the car is locked

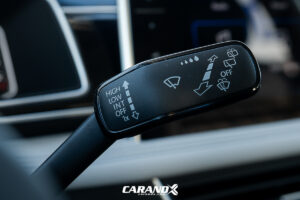

Rain-sensing wipers
Rear wiper
5 external cameras
12 ultrasonic radars
3 millimeter wave radars

Additional Features

ABS anti-lock braking system
Braking force distribution (EBD/CBC, etc.)
Brake assist (EBA/BA, etc.)
Traction control (TCS/ASR, etc.)
Vehicle stability system (ESP/DSC, etc.)
Active safety warning system Lane departure warning
Forward Collision Warning, Backing car side warning
Active braking
Lane assist
Lane Keeping Assist System
Lane centering
Front airbags Main driver’s seat, Co-pilot seat
Side airbags Front row
Side curtain airbags
Seat belt not fastened reminder
Tire Pressure Monitoring System Tire pressure alarm
Child seat interface (ISOFIX)
Parking radar Front and Rear

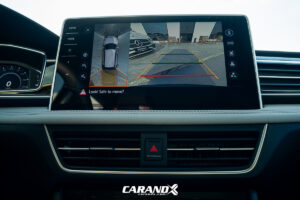

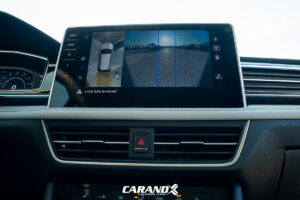

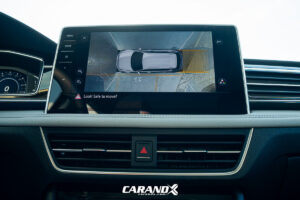

Driving assistance images Reversing image icon, 360° panoramic image Cruise control system Cruise control, Adaptive cruise control
Full-speed adaptive cruise control
Driving assistance level L2
Automatic parking
Automatic parking (AUTOHOLD)
Hill Start Assist (HAC)
Engine start-stop technology
Driving mode selection Exercise
Braking Energy Regeneration System
Low speed driving warning sound
Electronic engine immobilizer
Central locking system in the car

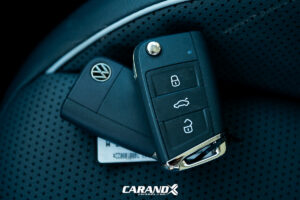

Smart remote control key
Keyless entry Front

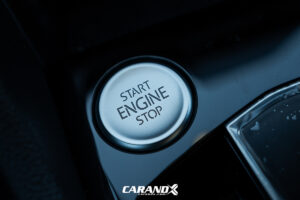

Keyless start
