24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i); 3445 c.c. aluminum engine block; 85.5 x 100 (mm.) bore x
Stroke 10.4:1 compression ratio
Stainless steel exhaust system

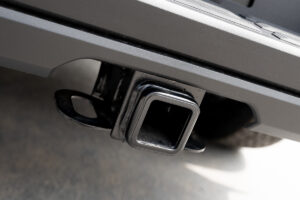

Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector

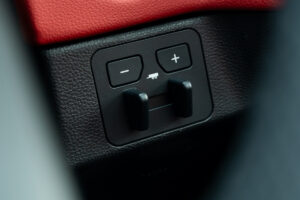

Integrated Trailer Brake Controller (ITBC) with Multi-Information Display
(MID) screen and trailer brake type, gain and manual trailer brake output
Trailer-Sway Control (TSC)
i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid; 437 hp @ 5200 rpm; 583 lb.-ft
2400 rpm
Parallel hybrid system with permanent magnet synchronous motor/generator
Electric motor power: 48 hp (36 kW)
Electric motor torque: 184 lb.-ft. (250 N•m)
288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
10-speed Electronically Controlled automatic Transmission with intelligence
(ECT-i), sequential shift mode, and uphill/downhill shift logic

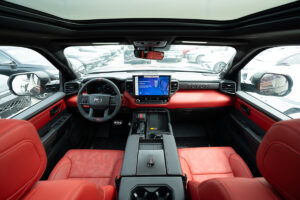

Interior
Thin-bezel auto-dimming rearview mirror with HomeLink universal transceiver
Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
Power tilt/slide panoramic roof with power sunshade
Power vertical rear window with defogger and privacy glass
Acoustic laminated windshield

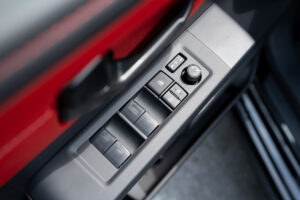

Power windows with one-touch auto up/down and jam protection

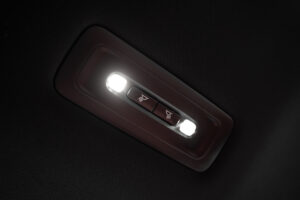

Front and rear LED maplights
Illuminated center console storage bin and glove box
TRD Pro “TOYOTA” heritage instrument panel badge
Soft-touch instrument panel, center console and door surfaces

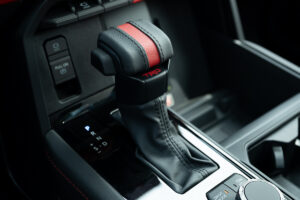

TRD red-striped leather-wrapped shift knob

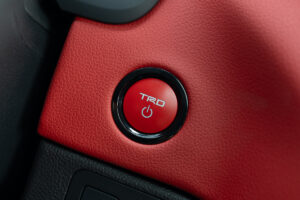

Red TRD engine start button
Multi-Terrain Monitor (MTM) with cameras

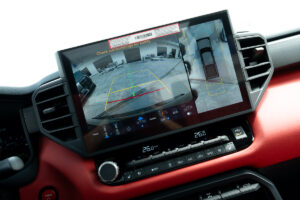

Backup camera with projected path

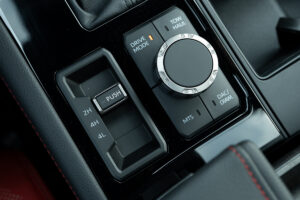

Drive Mode Select (DMS) switch and dial

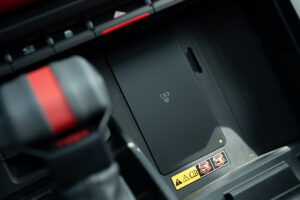

Qi-compatible wireless smartphone charging

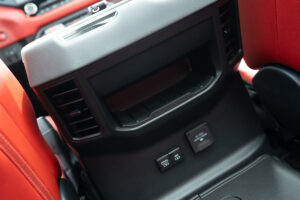

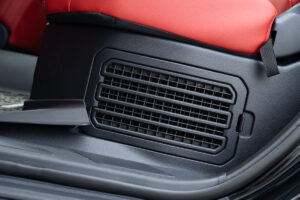

Rear-seat air vents

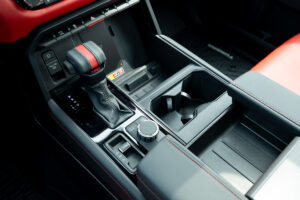

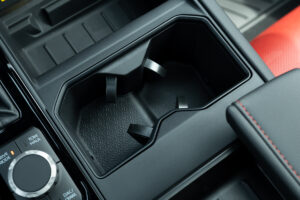

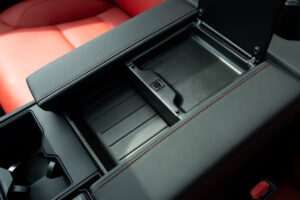

Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
Front 12V auxiliary power outlet
120V/400W rear-seat AC power outlet

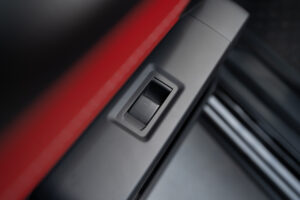

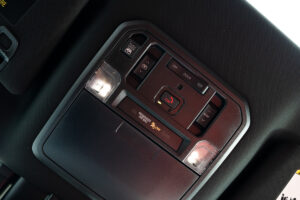

Overhead console with rear window control, sunglasses storage and Safety Connect
Electronic locking fuel door
Front and rear assist grips

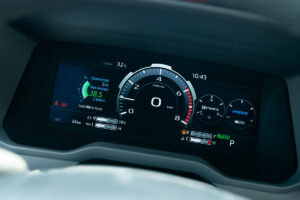

12.3 Inch digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages

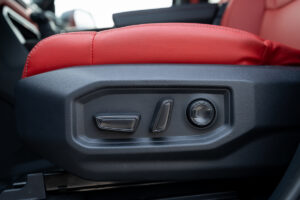

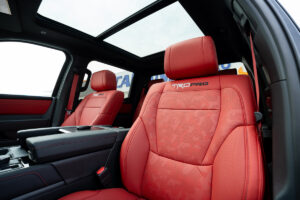

TRD Pro SofTex-trimmed seats with contrast stitching and technical-camo- pattern inserts; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support

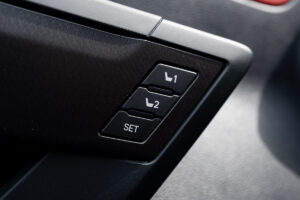

Driver’s-seat memory function
Heated front seats
Heated and ventilated front seats

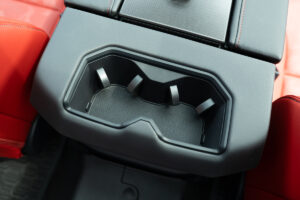

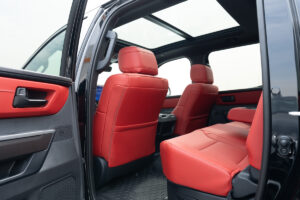

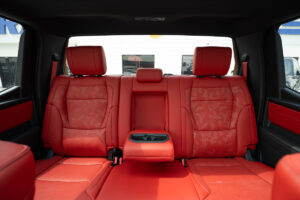

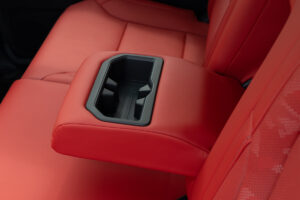

60/40 split, folding rear seat with center armrest and cup holders

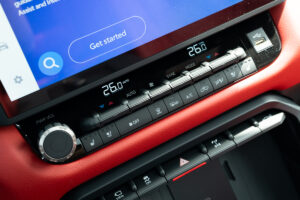

Dual zone automatic climate control with air filtration and individual
Temperature settings for driver and front passenger with S-Flow
Aluminum sport pedals
TRD Pro all-weather floor mats

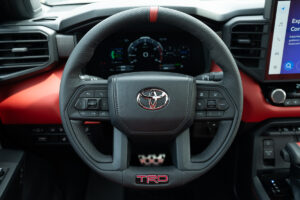

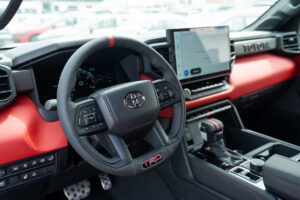

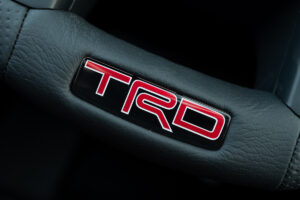

TRD leather-wrapped manual tilt/telescopic steering wheel with TRD badge, red center stripe, and phone, audio, display/infotainment, and Driver Assist controls

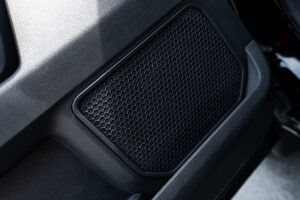

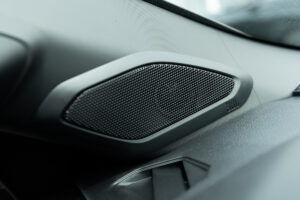

12-speaker JBL Sound System
Premium Audio including subwoofer and amplifier

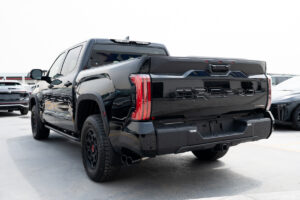

Exterior

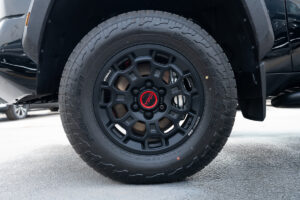

18 inch TRD Pro matte-black forged-aluminum BBS wheels with TRD center caps
TRD aluminum front skid plate with red-painted front coil springs and stabilizer bar
Front door handles with touch-sensor lock/unlock feature
Premium LED headlights with black trim,LED Daytime Running Lights (DRL), sequential turn signals, and automatic leveling adjustment
LED fog lights
Premium LED taillights with sequential turn signals

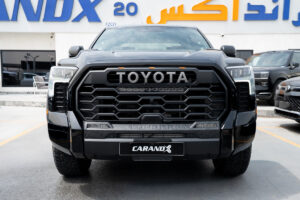

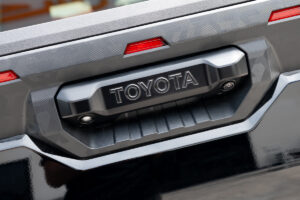

Black “TOYOTA” heritage grille with integrated light bar, amber marker lights,and color-keyed surround
Heated power outside mirrors with turn signal and blind spot warning indicators

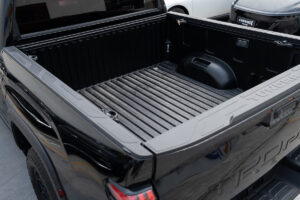

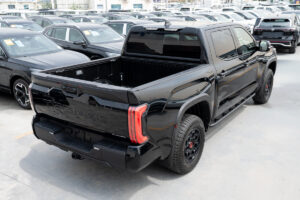

5.5-ft. Short Bed
Bed-mounted AC power outlet and LED bed lights

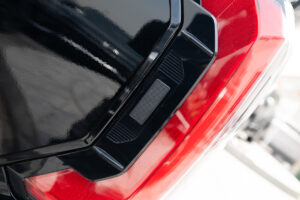

Power tailgate-release switch located in taillight, key fob and dash with knee-lift assit

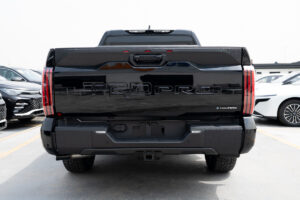

TRD PRO stamped easy lower and lift tailgate with smart switch release
LED center high-mount stop light (CHMSL) with integrated cargo lights
LED Trailer Reverse Assist (TRA) light
Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint

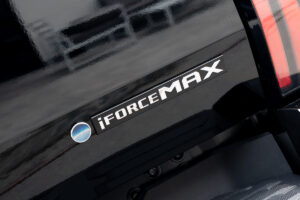

i-FORCE MAX tailgate badge

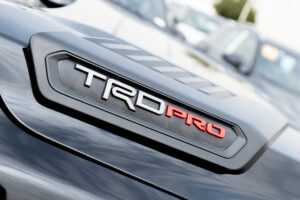

TRD PRO hood badge; black door handles; black window molding and mirror
Caps black technical-camo-grained tailgate spoiler
TRD Pro black dual exhaust tips
Front and rear mudguards
Overall length 233.6
Overall width 80.2
Overall height 78.0
Bed depth 20.9
Bed width (between wheelwells) 48.7
Bed width 58.7
Bed length 65.6
Wheelbase 145.7
Track width (front/rear) 69.4 / 69.4
Spare — full-size mounted under body
Additional Features
Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control
(DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing
Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
3-point seatbelts for all seating positions; driver-side Emergency Locking
Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all Passenger seatbelts
Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
Front and Rear Parking Assist with Automatic Braking
Eight total airbags, including driver and passenger side, knee and curtain Airbags
LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard Second-row rear seats
Child-protector rear door locks and power window lockout control
Star Safety System™ — includes Vehicle Stability Control (VSC), Traction
Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
Drive-Start Control (DSC)
Hill Start Assist Control (HAC)
Tire Pressure Monitor System (TPMS)
Driver and front passenger active headrests
4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD)
